星巴克保温杯塑料杯滚筒丝印机印刷效果鲜艳，速度快，节省人工，价格优惠，环保防尘除静电，适合大批量生产专业印刷适合金属、玻璃、陶瓷、塑胶、木材、皮革等材质的产品的精密平面印刷。广泛适用于：电子电器，广告，包装印刷，运动器材，玩具，文具礼品等行业。产品例如PCB、LCD、EL、IC、SMT等。同时该机型也适宜其他精密印刷，贴纸、陶瓷花纸、薄膜开关（按键）、海报、汽车玻璃、仪表、建筑饰板、铭板、广告牌标牌等。

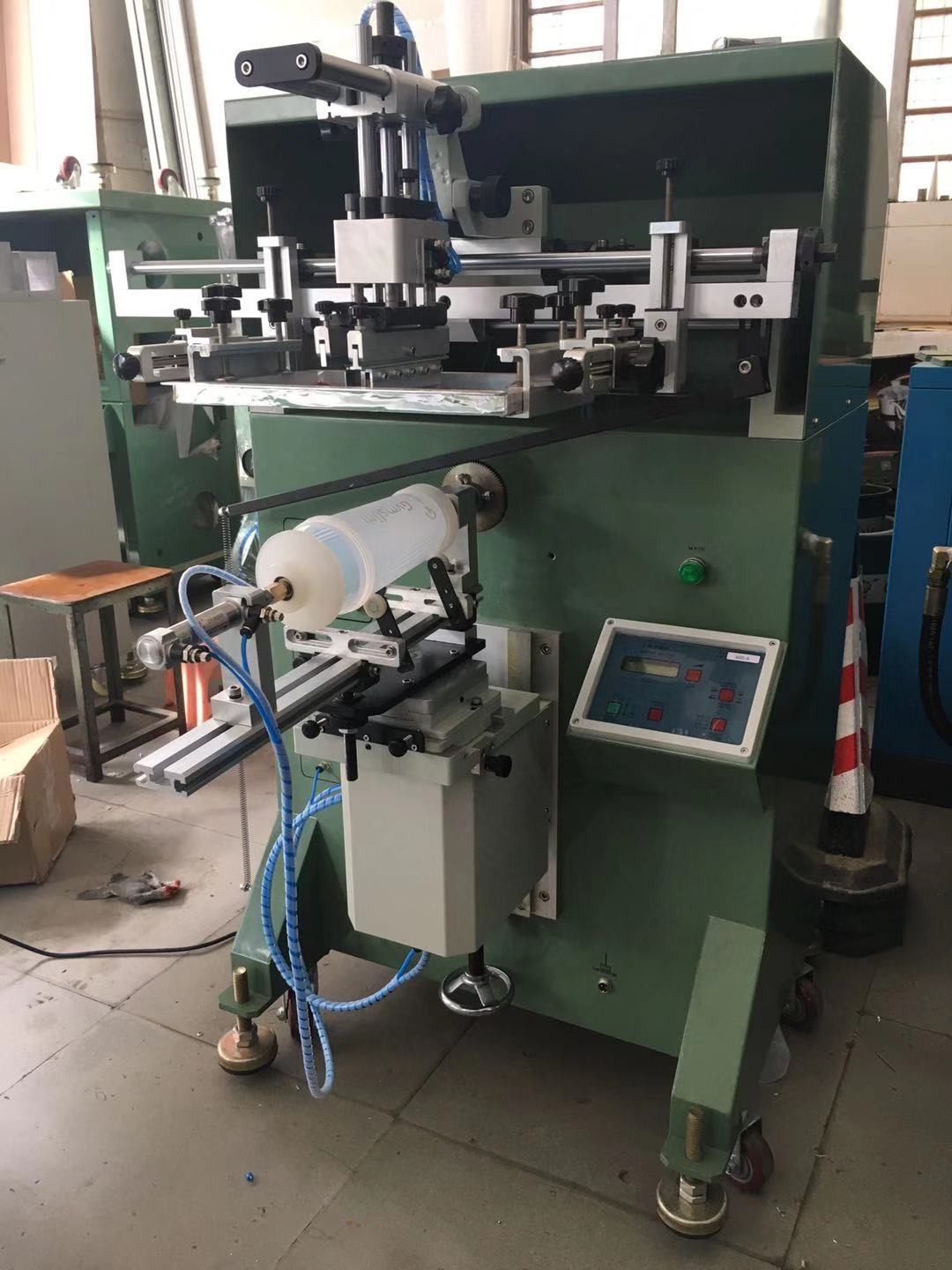

400C round surface screen printing machine
Product Brief
400C round screen printing machine is a universal screen printing machine. Can be widely used in daily supplies, toys, electronics, electrical appliances, plastics, leather, metal, glass, light industry and food packaging and other industries.
First, this round surface printing machine has the following characteristics:
1, full-featured, capable of printing cylindrical surface, conical surface and large arc surface.
2. Each position is electric eye sensor, accurate position, excellent performance.
3, the workbench can be fine-tuned in terms of left, right, front, back, and angle, and the positioning is accurate and stable.
4, automatic start function, remove and wash the net frame more convenient.
5, scraper left and right movement using the guide structure, lighter and smoother to improve the printing quality.
6. The lifting and lowering of the frame adopts the guide structure of the guide bar of the round steel, which has high precision and smooth movement.
7, automatic network function, the printing quality is higher.
8, the circuit part of the Taiwan Yangming control part, the use of a more stable
9. The blade is driven by pneumatic and synchronous belts, which makes the operation more stable.
10, automatic suction function, suitable for thin workpiece printing.
11, stable performance, the entire machine adopts the world's most advanced microcomputer controller control.
12, according to customer needs, preset two function programs, single-cycle printing and full-auto printing.
13. Adopting the latest pneumatic components from Taiwan Yadeke Company and Japan (SMC) Company, the power is smooth, strong and durable.
14, special shock absorber device, the machine operates very smoothly.
15. The workbench adopts cast aluminum fine tabletop, printing accuracy is higher.
16. The operation panel is more convenient and quick to use, and the screen printing function can be directly used for agile and convenient use.
17.
Second, technical parameters:
1, printing color 1 color
2, single cycle can
3, continuous exercise can
4, project count can
5, speed adjustment can (0 ~ 9 adjustable)
6, the delay of each part can be (0 ~ 9 adjustable)
7, printing speed 1000 times / hour
8, the largest frame 350mmX500mm
9, the largest printing area Φ127mm screen printing diameter
10, the frame on the trip 160mm
11, scraper left and right stroke 400mm
12, scraper, oil scraper up and down stroke 25mm
13, drive pneumatic
14. Control System Microcomputer
15, control voltage 12VDC
16, power supply voltage 220VAC / 1 phase
17, connect the load 20W
18, pneumatic supply 6bar
19. Air Consumption / Cycle 2.1L
20, body dimensions 720mm X 760mm X 1680mm
21, weight 170Kg
Third, the machine operation safety performance:
The 400C round screen printing machine conforms to the latest engineering styles and is absolutely reliable if used as required.
The machine is equipped with an emergency switch: When the emergency switch is pressed in the event of an emergency, the machine is immediately powered off. Returning to the starting position, when the emergency switch is turned off after things are done, it can be safely started and returned to normal.
However, the following situations may still cause danger!
(1) When the machine needs to be moved or repaired, the power source and air source must be cut off.
(2) When adjusting or cleaning the oil scraper, follow the steps.
(3) Enhance fire awareness and equipped with fire fighting equipment.
